Automatic horizontal ring wrapping machine
Basic Info
Model No.: S1800EZ-PL
Brand: SINOLION
Applicable Industry: Apparel
Packaging Type: Cartons
Type: Automatic Wrapping Machine
Driven Type: Electric
Application: Milk
Automatic Grade: Automatic
Inclusion Degree: Fully Wrapped Winding Machine
Structure: Pallet Wrapping Machine
Film Frame Structure: Pre Tension
Series: S Series Horizontal Winding Machine
Additional Info
Packaging: iron cardle
Productivity: 10sets/month
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 10sets/month
Certificate: ISO9001:2015
HS Code: 84224000
Port: Qingdao
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Product Description
Horizontal wrapper wraps tube or plate that won`t fit on a Turntable, require banding, compression or extra packing for shipment. It has a proven record of success in many industries such as profiled product, tubular product and plank stuff etc.
We offer a wide variety of options to meet your specific requirements. Each application is evaluated to provide the right solution to your needs.
Specification
Rotating ring inner diameter: 450-2000mm (to be customized)
Wrapping dimension: Width & Height: to be designed; Length: 1800-5000mm; Weight: 300-1000kgs
Rotating ring speed: Max. 33rpm
Compressed air pressure: 0.5Mpa
Air consumption: 10L/M
Film carriage
Pre-stretch / Mechanical stretch film carriage
Width: 500mm;
Core size: 3``;
Film roll diameter: max 240mm
Thickness: 17-35μm
Control System
PLC electric control system, touch screen panel
Ring rotating speed controlled by the inverter
In-feed & out-feed Conveyor speed controlled by the inverter
Start and finish cycles are controlled by photocells
Auto film cutting and conveying unit
Main configuration:
PLC, screen & interter: Siemens
Motor: SEW brand
Pneumatic parts: Festo
Auto film feeding and cutting unit:
Hold the film head for feeding;
Automatically cut the film after wrapping and hold film for the next pallet
Pneumatic components: Festo brand
Air consumption: 1000ml
Air pressure: 0.4-0.6Mpa

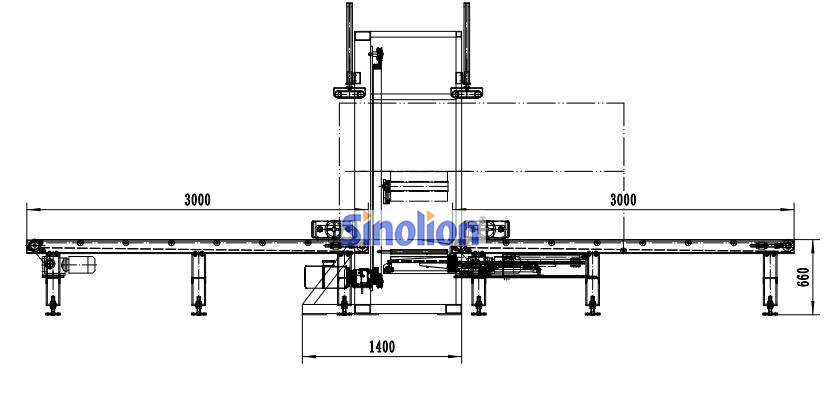

Infeed and out feed conveyor
Can be designed with roller, slat or belt, etc.
Conveyor speed: 15m/min (max.) Speed frequency adjustable
Conveyor height: 500-600mm;
Total length: to be designed
