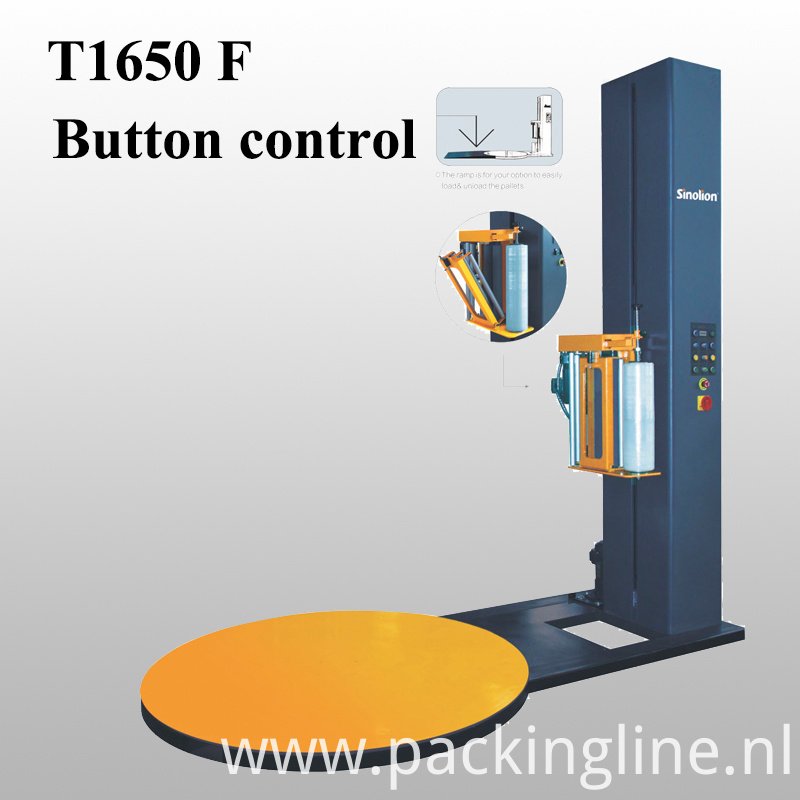

Standard Pallet Packing Machine With Ramp
Model No.: T1650F
Applicable Industry: Apparel
Packaging Type: Cartons
Type: Prestretching Wrapping Machine
Driven Type: Electric
Application: Hair Care Products
Automatic Grade: Semi-Automatic
Inclusion Degree: Half Winding Machine
Structure: Pallet Wrapping Machine
Film Frame Structure: Pre Tension
Series: T Series - Pallet Wrapping Machine
Wrapping Size: 500-1200*500-1200*2400mm(MAX)
Packaging: Iron and wooden
Productivity: 130 set/month
Place of Origin: Shandong Jinan
Supply Ability: 130 set/month
Certificate: CE ISO
HS Code: 84224000
Payment Type: L/C,T/T,D/P
Delivery Time: 35 Days
1. Semi-automatic model; PLC easy operation control; Pre-stretch system up to 300% of the film length (customized); Auto cut & grab film after wrap finished.
2. Stable performance, working life 10 years, quality guarantee 1 year.
3. European standard design and manufacture, same quality, but Chinese market price; pass CE certificate.
4. Accept customer's design order, satisfy customer's different requirements, and install weighting unit ect.
|1. Wrapping size||500-1200mm (L) *500-1200mm (W)|
|2. Packaging height||Max.2400mm (1800/2800mm availiable)|
|3. Work efficiency||20-40 loads/H|
|4. Turntable speed||0-15RPM (adjustable, soft start & stop)|
|5. Bearing||Max. 2000kgs|
|6. Turntable size||D=1650mm, H=78mm|
|7. Film carriage||Driven pre-stretch carriage. stretch ratio up to 300%|
|8. Tower||Double chain design. Lifting speed adjustable|
|9. Control system||PLC|
|12. Power||Turntable 0.75kw; film carriage 0.35kw; tower: 0.37kw; 220V 50HZ 1Phase|
| Some parts of the machine can be exchanged according to customer requirements |
