Economy Standard Luggage Wrapping Machine

Basic Info

Model No.XL-01

BrandSinolion

Applicable IndustryApparel

Packaging TypeCartons

TypePrestretching Wrapping Machine

Driven TypeElectric

ApplicationMilk

Automatic GradeSemi-Automatic

Inclusion DegreeFully Wrapped Winding Machine

StructurePallet Wrapping Machine

Film Frame StructurePre Tension

SeriesT Series - Pallet Wrapping Machine

ControlPLC

Wrapping Size400-1200mm*180-400mm*300-600mm

Rotating Speed20 RPM

Additional Info

PackagingIron and wooden

Productivity130 set/month

TransportationOcean,Land,Air

Place of OriginChina. Shandong

Supply Ability130 set/month

CertificateCE ISO

HS Code84224000

PortQingdao

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF

Product Description

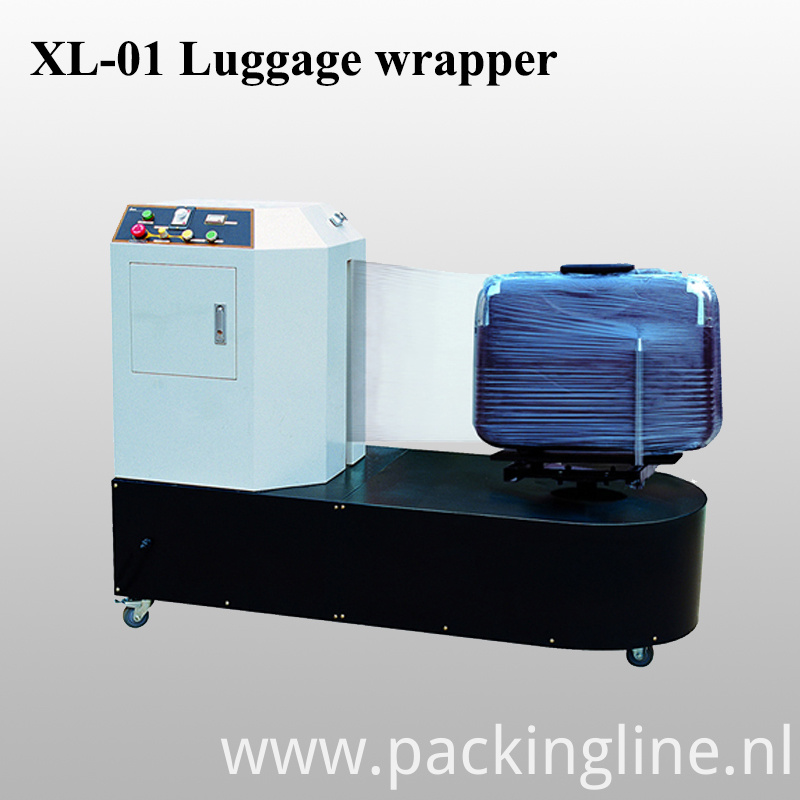

XL-01 Luggage Wrapper


Luggage wrapper is designed to wrap luggage and related items for security purpose in airport setting.

Film provides extra support while the luggage is being transport to protect them from being demaged.
The operator places the luggage on the platform and adjusts vertical rods to secure bag according the luggage size.

wrapping specifications (400-1200)mm*((180-400)mm*(300-600)mm
Rotating speed 20 rpm
Max load 100kg
Film Carriages system pre-stretch film carriage
Machine size (1595*600*1194)mm
Power/voltage 1kw/AC 220V


Technical Data
1.1 Packing size
400-1200 mm (L) ×180-400 mm (W)×300-600 mm (H)
1.2 Turntable Capacity: 100Kg(max)
Load max weight should not exceed 100kg.
If load limit is exceeded, machine life span is shortened.
1.3 Power Supply: AC180~240V 50HZ 20A 1P
1.4 Power 0.85KW
1.5 Turntable speed 0~20rpm
1.6 Machine Weight 220Kg
1.7 Packaging efficiency 100-120 luggages/hour

1.8 Packing Materials: stretch film,foil
Width:500 mm
Thickness:17-35μm
Inner Core:76.2mm
Outer-Dia. ≤260 mm
Control Panel


You are most welcomed to visit our factory, designing drawings is only special for you.
For more details , you can get from our free videos and pictures.
The machine meets CE certificate completely.
