Luggage Wrapping Machine Luggage Packing Machine
Basic Info
Model No.: XL-01
Brand: Sinolion
Applicable Industry: Apparel
Packaging Type: Cartons
Type: Prestretching Wrapping Machine
Driven Type: Electric
Application: Milk
Automatic Grade: Semi-Automatic
Inclusion Degree: Half Winding Machine
Structure: Pallet Wrapping Machine
Film Frame Structure: Pre Tension
Series: T Series - Pallet Wrapping Machine
Max Load: 100KG
Wrapping Size: 400-1200mm*180-400mm*300-600mm
Rotating Speed: 20 RPM
Power: As You Need
Additional Info
Packaging: Iron and wooden
Productivity: 130 set/month
Transportation: Ocean,Air
Place of Origin: Shandong Jinan
Supply Ability: 130 set/month
Certificate: CE ISO
HS Code: 84224000
Port: Qingdao
Payment Type: T/T,D/P
Incoterm: FOB,CIF
Product Description

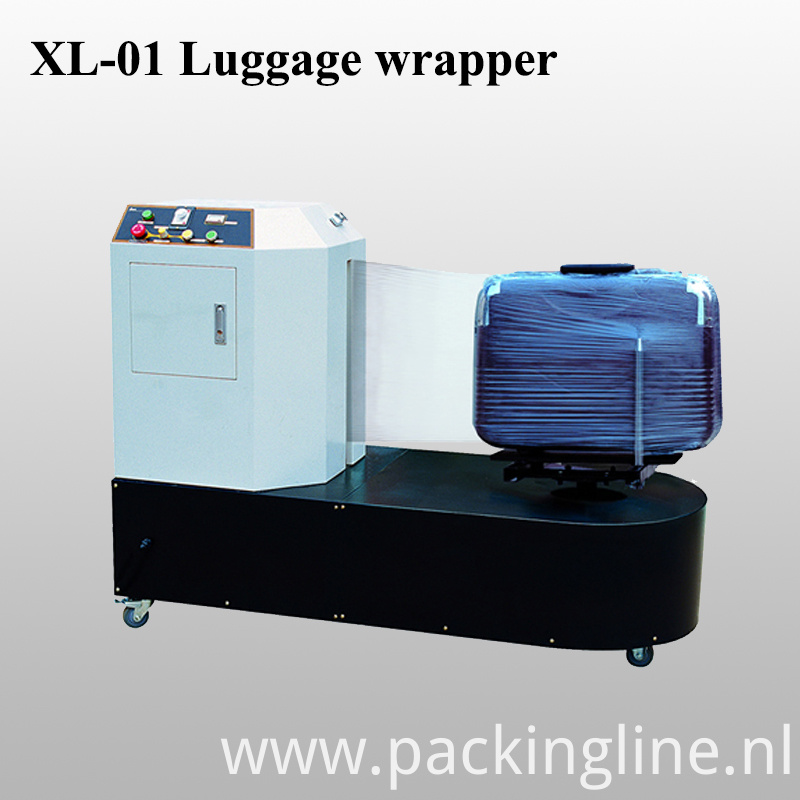

XL-01 Luggage Wrapper
Luggage wrapper is designed to wrap luggage and related items for security purpose in airport setting.
Film provides extra support while the luggage is being transport to protect them from being demaged.
The operator places the luggage on the platform and adjusts vertical rods to secure bag according the luggage size.
wrapping specifications | (400-1200)mm*((180-400)mm*(300-600)mm |
Rotating speed | 20 rpm |
Max load | 100kg |
Film Carriages system | pre-stretch film carriage |
Machine size | (1595*600*1194)mm |
Power/voltage | 1kw/AC 220V |
Technical Data
1.1 Packing size
400-1200 mm (L) ×180-400 mm (W)×300-600 mm (H)
1.2 Turntable Capacity: 100Kg(max)
Load max weight should not exceed 100kg.
If load limit is exceeded, machine life span is shortened.
1.3 Power Supply: AC180~240V 50HZ 20A 1P
1.4 Power 0.85KW
1.5 Turntable speed 0~20rpm
1.6 Machine Weight 220Kg
1.7 Packaging efficiency 100-120 luggages/hour
1.8 Packing Materials: stretch film,foil
Width:500 mm
Thickness:17-35μm
Inner Core:76.2mm
Outer-Dia. ≤260 mm
Control Panel
You are most welcomed to visit our factory, designing drawings is only special for you.
For more details , you can get from our free videos and pictures.
The machine meets CE certificate completely.
