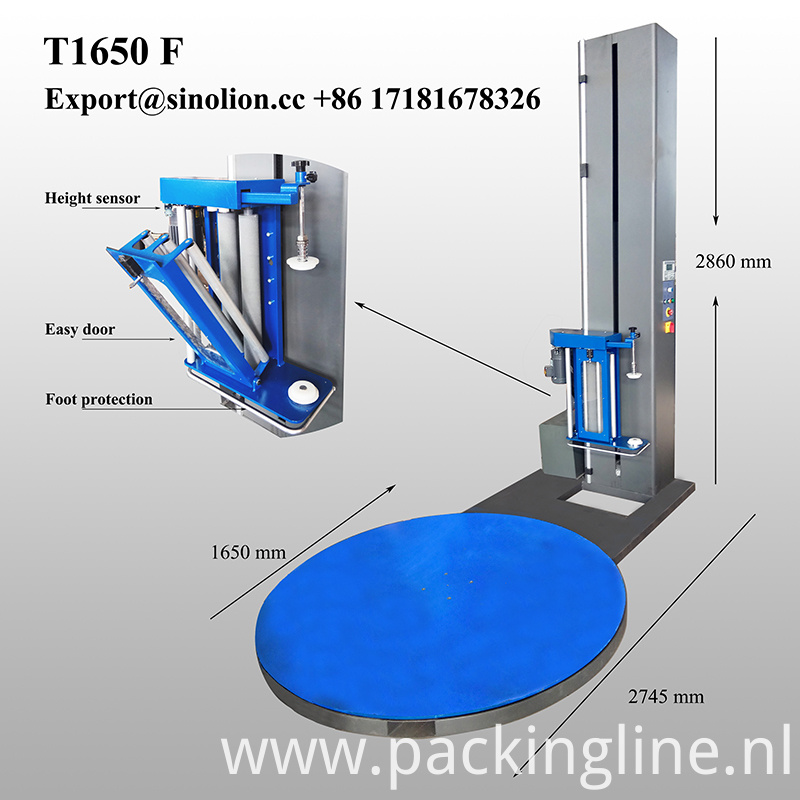

Turntable Pallet Packing Machine Pallet Wrapper

Basic Info

Model No.T1650F

BrandSinolion

Applicable IndustryApparel

Packaging TypeCartons

TypePrestretching Wrapping Machine

Driven TypeElectric

ApplicationMilk

Automatic GradeSemi-Automatic

Inclusion DegreeHalf Winding Machine

StructurePallet Wrapping Machine

Film Frame StructurePre Tension

SeriesT Series - Pallet Wrapping Machine

Bearing2000KG

Packing Size1200*1200*2400mm

Additional Info

PackagingIron and wooden

Productivity130 set/month

TransportationOcean,Land,Air

Place of OriginChina. Shandong

Supply Ability130 set/month

CertificateCE ISO

HS Code84224000

PortQingdao

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF

Product Description

Machine introduction
Pallet packaging machine is used to wrap stretch film around a loaded pallet. Stretch film provides protection while the products are being transported&storaged. Stretch wrapper is widely used in chemical industry, electronic industry, home appliances, foodstuff etc.
Technology Data

1. Wrapping size 500-1200mm (L) *500-1200mm (W)
2. Packaging height Max.2400mm (1800/2800mm availiable)
3. Work efficiency 20-40 loads/H
4. Turntable speed 0-15RPM (adjustable, soft start & stop)
5. Bearing Max. 2000kgs
6. Turntable size D=1650mm, H=78mm
7. Film carriage Friction stretch
8. Tower Double chain design. Lifting speed adjustable
9. Control system PLC
10. Weight 600kgs
11. Dimension 2745mm*1650mm*2860mm
12. Power Turntable 0.75kw; film carriage 0.35kw; tower: 0.37kw; 220V 50HZ 1Phase
Some parts of the machine can be exchanged according to customer requirements
T1650f With Carriage 800
