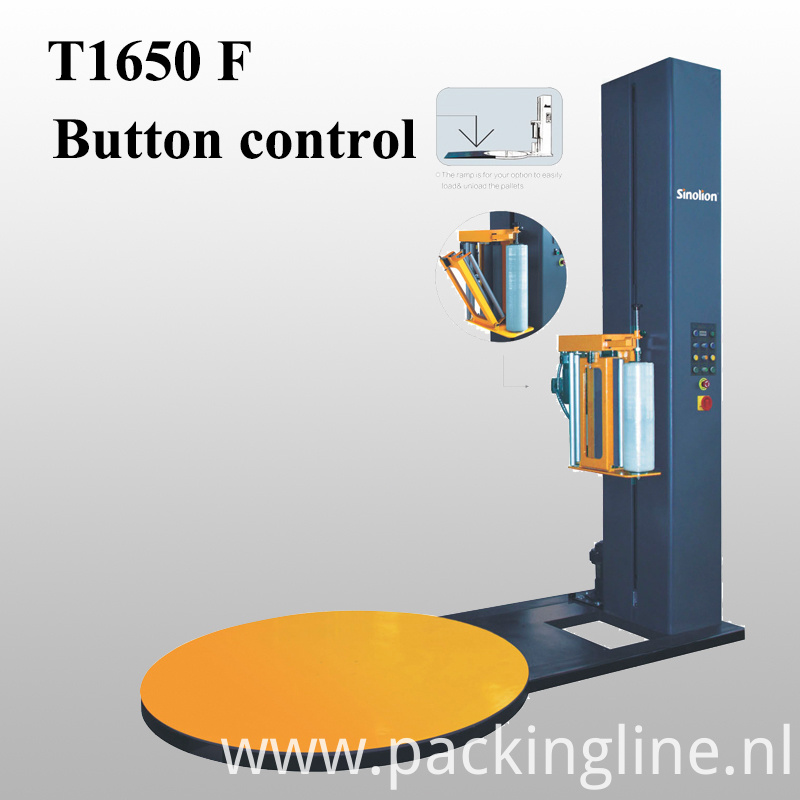

Pallet Wrapping Machine Pallet Stretch Wrapper T1650F
Basic Info
Model No.: T1650F
Brand: Sinolion
Applicable Industry: Apparel
Packaging Type: Band
Type: Prestretching Wrapping Machine
Driven Type: Electric
Application: Milk
Automatic Grade: Semi-Automatic
Inclusion Degree: Half Winding Machine
Structure: Pallet Wrapping Machine
Film Frame Structure: Pre Tension
Series: T Series - Pallet Wrapping Machine
Wrapping Size: 500-1200*500-1200*2400mm(MAX)
Bearing: 2000kgs
Additional Info
Packaging: Iron and wooden
Productivity: 130 set/month
Transportation: Ocean,Land,Air
Place of Origin: Shandong Jinan
Supply Ability: 130 set/month
Certificate: CE ISO
HS Code: 84224000
Port: Qingdao
Payment Type: T/T,D/P
Incoterm: FOB,CIF
Product Description
Machine introduction
1. Semi-automatic model; PLC easy operation control; Pre-stretch system up to 300% of the film length (customized); Auto cut & grab film after wrap finished.
2. Stable performance, working life 10 years, quality guarantee 1 year.
3. European standard design and manufacture, same quality, but Chinese market price; pass CE certificate.
4. Accept customer's design order, satisfy customer's different requirements, and install weighting unit ect.
Technology Data
| 1. Wrapping size | 500-1200mm (L) *500-1200mm (W) |
| 2. Packaging height | Max.2400mm (1800/2800mm availiable) |
| 3. Work efficiency | 20-40 loads/H |
| 4. Turntable speed | 0-15RPM (adjustable, soft start & stop) |
| 5. Bearing | Max. 2000kgs |
| 6. Turntable size | D=1650mm, H=78mm |
| 7. Film carriage | Driven pre-stretch carriage. stretch ratio up to 300% |
| 8. Tower | Double chain design. Lifting speed adjustable |
| 9. Control system | PLC |
| 10. Weight | 650kgs |
| 11. Dimension | 2745mm*1650mm*2860mm |
| 12. Power | Turntable 0.75kw; film carriage 0.35kw; tower: 0.37kw; 220V 50HZ 1Phase |
| Some parts of the machine can be exchanged according to customer requirements | |
