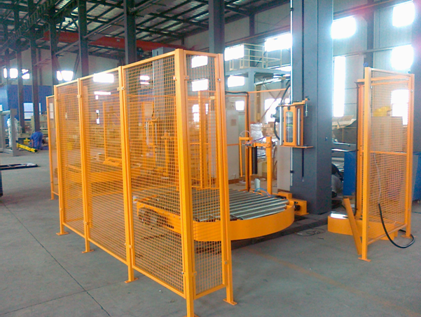

Fully Automatic Pallet Online Stretch Wrapper
Basic Info
Model No.: T1800FZ-PL
Brand: SINOLION
Applicable Industry: Alcohol and Tobacco
Packaging Type: Cartons
Type: Automatic Wrapping Machine
Driven Type: Electric
Application: Milk
Automatic Grade: Automatic
Inclusion Degree: Half Winding Machine
Structure: Pallet Wrapping Machine
Film Frame Structure: Pre Tension
Series: T Series - Pallet Wrapping Machine
Product Name: Pallet Stretch Wrapper
Additional Info
Packaging: Standard seaworthy case
Productivity: 1500set/year
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 130set/month
Certificate: CE
HS Code: 8422 4000
Port: Qingdao,Shanghai,Beijing
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF
Product Description
Fully Automatic Pallet Online Stretch Wrapper
1. Technology data:
| Load size(mm) | 500-1100(L) x 500-1100(W) |
| Wrapping height(mm) | 1800mm-2800mm available |
| Packing efficiency | 20-40 loads / hour |
| Turntable turning speed | 3-15rpm |
| Roller conveying speed: | 15mpm adjustable |
| Mast height | 3050mm |
| Turntable diameter | 1800mm |
| Height of turntable | 400mm |
| Power supply | 2.0KW 380V, 50HZ, 3P, 5Wires |
| Max load capacity | 2000kgs |
2. Wrapping material
Stretch wrapping film: Core size: 3``
Film width: 500mm
Diameter: max 260mm
Thickness: 20-35μm
One roll stretch film to be supplied along with machine for trial running
3. Utility:
Compressed air
Pressure: 0.5-0.6 MPa
Dew point: +2-+10℃ (7bar, +2-+10℃)
Air consumption: 1000ml/min
4. Supply scope
Automatic turntable Stretch Wrapping Machine 1 set
4.1 Film carriage
Powered pre-stretch system up to 1:3 to min film consumption(Pre-stretch ratio can be specially made )
Carriage door opens for effortless roll change and thread film
Film delivery variable speed by separate AC Drive Motor.
Heavy duty double-chain carriage lift, calm and safety.
4.2 Rotating turntable 1set
Diameter: 1800mm
Roller dia.: 76mm
Centers: 119mm
Motor: SEW
4.3 Mast with film head 1 set
Film carriage lifting driving: chain driving, good stability and high reliability
Driving reducer: worm gear reducer
Film head with door for easy film thread and film changing.
Motor power: 0.37kw
4.4 Film clamp& cutting unit 1set
When stretch wrapping finish, the film will be cut and clamped automatically.
When the film tail is released from the clamp, the air shooter will blow the film tail up, then the film tail will be wrapped by stretch film and keep it tightly with the pallet to ensure no film tail produced.
Film hot melt cutting adopts electrical heating wire to cut the film.
After film being cut, the hot sealer will seal the film tail automatically to ensure no film tail come out.
Pneumatic component: FESTO brand
4.4 Control system 1set
PLC control system
Cut film automatically after wrapping finished
Film tension control adjustable
Carriage up/down speed adjustable
Safety tower light alarm
5. Main electrical parts
| No. | Item | Brand | Brand Original |
| (1) | PLC& Inverter | Omron | Japan |
| (2) | Touch screen | Omron | Japan |
| (3) | Photo eye | Contrinex | Switzerland |
| (4) | Proximity switch | OMRON | Japan |
| (5) | Air cylinder | Festo | Germany |
| (6) | Solenoid valve | Festo | Germany |
| (7) | Turntable Motor | SEW | Germany |
| (8) | Stretching and film head lift and Roller Conveyor motor | Local | Taiwan |
| (9) | Breaker | Schneider | France |
| (10) | Contactor | Schneider | France |
Spares:
| Item | unit | Qty | Remark |
| Film cutting heating wire | m | 5 |
|
| Hot sealing Tape | roll | 1 |
|
| Rubber roller | pcs | 2 |
|

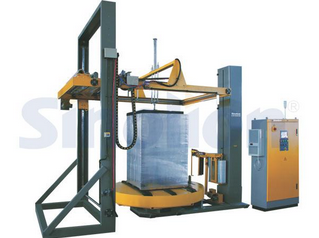

6. Drawing of the main structure
Just for referance
7 Option TSD(Top Sheet Dispenser)
