Ram Stretch Wrapper Pallet Packing Machine
Basic Info
Model No.: R1800F
Brand: Sinolion
Applicable Industry: Apparel
Packaging Type: Cartons
Type: Prestretching Wrapping Machine
Driven Type: Electric
Application: Milk
Automatic Grade: Semi-Automatic
Inclusion Degree: Half Winding Machine
Structure: Pallet Wrapping Machine
Film Frame Structure: Pre Tension
Series: R Series - Cantilever Winding Machine
Control: PLC
Bearing: No Limited
Wrapping Size: (500-1300)mm*(500-1200)mm* 2400mm
Packing Efficiency: 20-40 Load/h
Additional Info
Packaging: Iron and wooden
Productivity: 130 set/month
Transportation: Ocean,Land,Air
Place of Origin: Shandong Jinan
Supply Ability: 130 set/month
Certificate: CE ISO
HS Code: 84224000
Port: Qingdao
Payment Type: T/T,D/P
Incoterm: FOB,CIF
Product Description

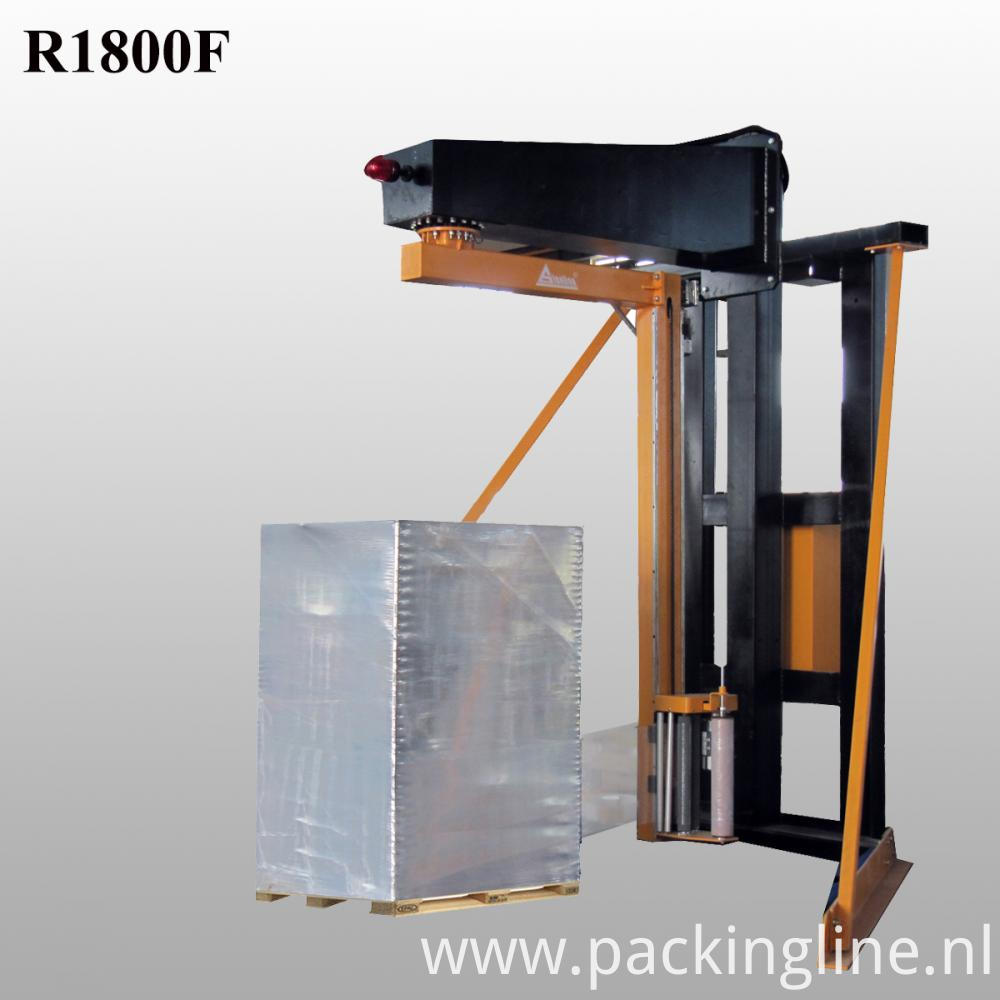

R 1800F Semi-automatic rotary arm stretch wrapper is very Suitable for a variety of packaging areas, The best advantage is that the pallet weight is no limited. So you can wrap many heavy pallets. And this machine is durable, usually can be used more than 10 years.
Machine introduction
The Auto rotary arm stretch wrapper is easy to set up. And use widely.
Wrapping specifications | (500-1300)mm*(500-1200)mm. |
Packaging efficiency | 20-40 loads/H availiable. |
Arm speed | 0-15rpm frequency control. |
Arm performance | High sensitivity emergency brake system, auto reset. |
Film carriage system | Pre-stretch film carriage, stretch ratio up to 250%, automatic film feeding & adjustable speed. |
Lifting column | Chain structure, speed variable frequency adjustable. |
Control system | PLC programmable control. |
Machine weight | 680KG(without support) |
Machine dimensions | 4300mm*2320mm*3530mm (without convey line) |
Power/ voltage | Arm 0.75kw, Film carriage 0.37kw, lift 0.37kw/AC220V |
Packing cases: Partner with CocaCola, Pepsi-Cola, Canon, LG, Panosonic etc. National corporation.
Sincerely expecting your cooperation with us.
Product Categories : Wrapping Machine > R Series Rotary Arm Stretch Wrapping Machine
